Check the registration residuals for selected scans


Select previously registered scan data objects and validate the registration residual values. Typically, scans stations are numbered and sorted by the sequence they were captured with significant overlap between adjacent scan stations.

Registration deviation inputs

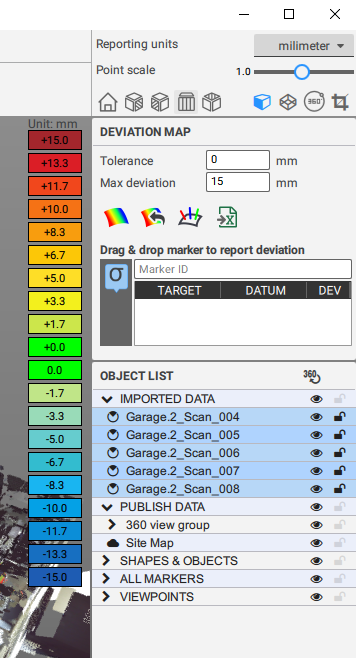

Configure the registration deviation inputs before running the command. Select the preferred reporting units; the deviation tolerance; and the maximum deviation search distance.

Registration Reporting


Scan station are compared in the sequence they are sorted. The first scan station is the base line and will not have a results reported.

Each scan in sequence is computed for RMS residual, % Overlap, and Confidence results.

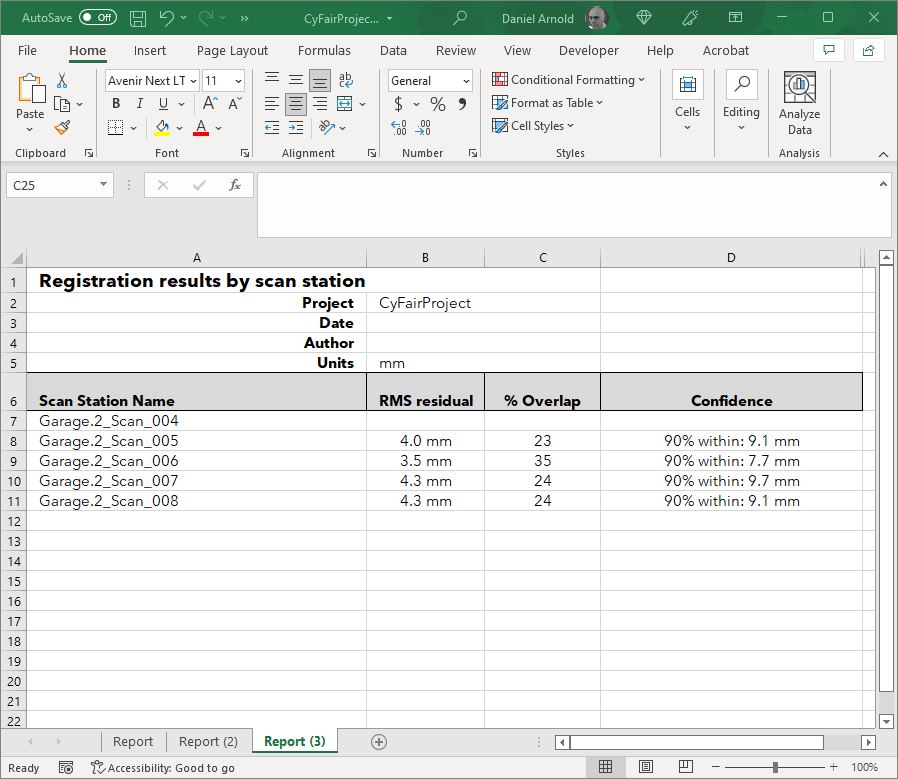

Registration residuals report:
